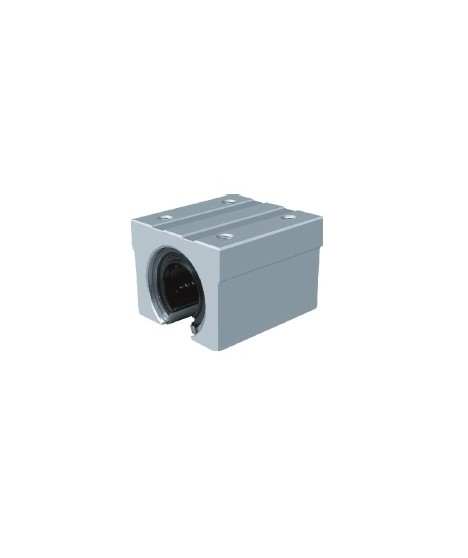

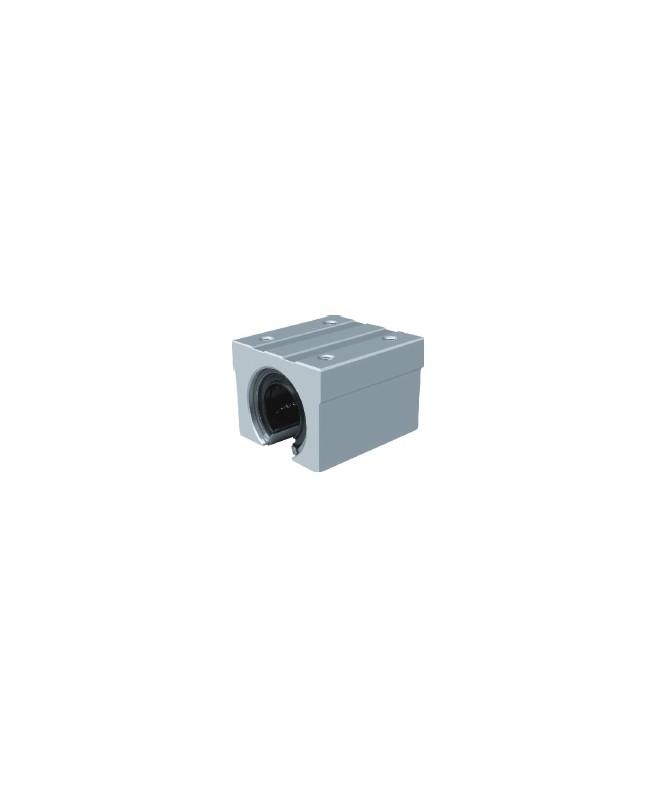

Linear Bearing SBR - C16 - EXSBR16UU

Diameter – 16

h – 20

E – 22.5

W - 45

L - 45

F - 33

T – 9

h1 - 10

θ - 800

B - 32

C – 30

S – M 5

e - 12

Dynamic load - 5.9 tonnes

Static load - 9.1 tonnes

Weight – 0.150 kg

€4.92 pcs
Tax included Ships within 1–2 working days

Shipping to the EU from: €5.44 (RO) · €6.62 (GR) · €9.04 (HR, CZ, HU, PL, SK, SI) · €17.29 (CY) · €18.12 (AT, DE) · €24.96 (BE, FR, IT, NL) · €43.07 (ES) · €44.75 (DK, LU) · €63.94 (EE, FI, LV, LT, PT, SE). VAT incl., smallest parcel; the exact price is calculated at checkout by weight and size. Transit 2–7 working days after dispatch. IE, MT: price on request. Delivery times and details

SBR UU series linear bearings are linear guides designed to ensure smooth and precise movement along a specific axis. These bearings are used in various machines and equipment such as machine tools, automated systems, and 3D printers.

Key features:

Linear motion: Provide low friction and high-precision linear motion.

Bearing housing: Made of aluminium for durability and high strength.

Seals: The bearings have double seals (designation "UU"), which protect them from dust and contamination, extending their service life.

Easy to install: Equipped with mounting holes for easy equipment installation.

Compatibility: Suitable for use with round shafts of various sizes, making them versatile for many applications.
