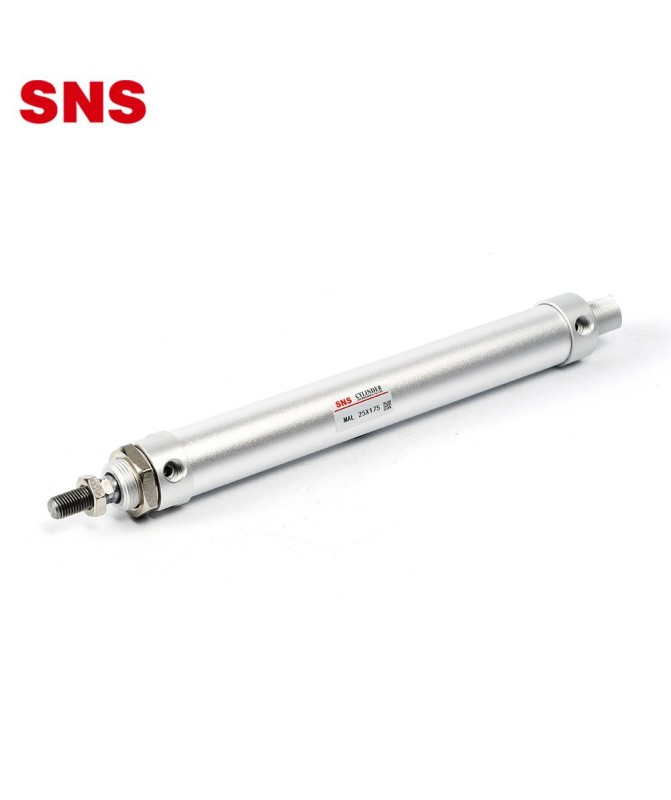

Pneumatic Mini Cylinder Series MAL 16 - Round Body (Double Acting)
| Piston Ø | A (length at stroke 0) | Overall length | K (rod thread) | L (front cover thread) | Air port |
| 16 | 107 | A + stroke | M6×1 | M16×1.5 | M5 |
Dimensions in mm. Overall body length = A + stroke.
Main characteristics:
Series: MAL (round-body mini cylinder)
Piston diameter: 16 mm
Action: Double Acting
Operating medium: Filtered compressed air
Body material: Aluminium alloy
Operating pressure: 0.1 – 0.9 MPa
Proof pressure: 1.35 MPa
Operating temperature: -5°C to +70°C
Cushioning: rubber bumpers (fixed)
Air port: M5
Cylinder stroke: standard strokes from 25 to 500 mm.
✔ Made to order – usually 2–3 working days.
If you need a stroke that is not among the standard options, please contact our team – we also make non-standard sizes.
MAL series pneumatic cylinders are compact mini cylinders with a round aluminium-alloy body. They suit applications that need linear motion with low force, little space and low weight.
The cylinder is double-acting – compressed air drives the piston both when extending and retracting, giving controlled motion in both directions.
The front cover has an external thread and a nut for quick mounting through a panel hole or bracket, and the rear cover has a clevis eye for pin mounting. Rubber bumpers at both ends soften the impact at the end positions.
We make these cylinders to order from original parts – barrel, piston rod and seal kit – with exactly the stroke you choose.
Applications:
light industrial automation
clamping and positioning fixtures
pushing and separating parts
packaging and small machines
machine doors, covers and flaps
MAL16-25
