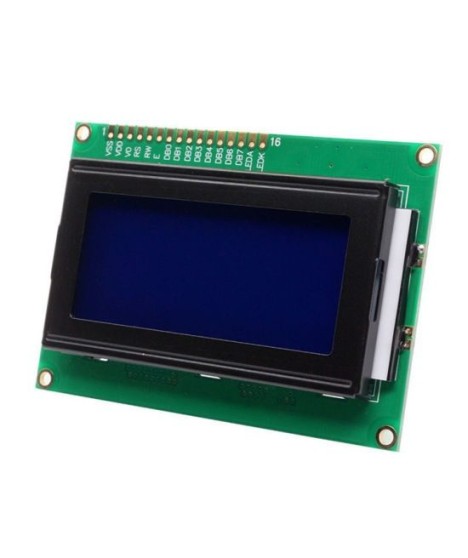

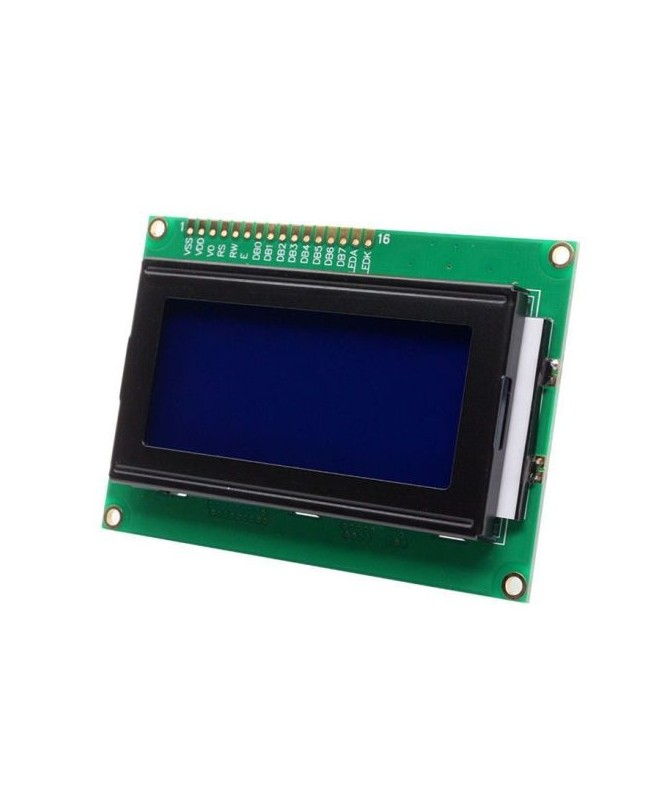

LCD display 16x4 characters, blue backlight, 5V – 1604A
Character LCD display, 16 characters × 4 lines, with blue background, white characters and LED backlight. It uses the standard 16-pin parallel interface and is compatible with HD44780 / ST7066 controllers. It works in 4-bit and 8-bit mode and connects easily to Arduino, AVR, PIC, STM32 and other microcontrollers.
- Format: 16 × 4 characters
- Supply: 5 V DC
- Interface: parallel, 4-bit / 8-bit
- Controller: HD44780 / ST7066 compatible
- Backlight: LED, blue background, white characters
- Module size: 87 × 60 mm
1604A character LCD display
The LCD 1604A is an alphanumeric display module for showing text and numbers in electronic devices, automation systems, measuring equipment and microcontroller projects.
The display has 4 lines of 16 characters – twice as much information as the standard 1602 display (2 × 16), with the same wiring and the same commands. It is programmed with the standard HD44780 libraries (e.g. LiquidCrystal for Arduino) by setting the size to 16 × 4.
The interface is parallel and works in 8-bit or 4-bit mode. In 4-bit mode only lines DB4–DB7 are used, so only 6 microcontroller I/O pins are needed (RS, E, DB4–DB7), and R/W is connected to ground.
Contrast is adjusted through the VO input – usually with a 10 kΩ potentiometer between +5 V and GND.
The module has no built-in I2C adapter. For a 2-wire (I2C) connection, a separate PCF8574 I2C module can be used.
Technical specifications
| Display type | alphanumeric (character) LCD |
| Format | 16 characters × 4 lines |
| Character matrix | 5 × 8 dots |
| Supply voltage | 5 V DC |
| Interface | parallel, 4-bit / 8-bit |
| Controller | HD44780 / ST7066 or compatible |
| Backlight | LED |
| Background colour | blue |
| Character colour | white |
| Duty | 1/16 |
| Contrast adjustment | via VO input |
| Number of pins | 16 |
| Pin pitch | 2.54 mm |
Mechanical specifications
| Board size | 87 × 60 mm |
| Viewing area | ≈ 62 × 26 mm |
| Character size | ≈ 2.95 × 4.75 mm |
| Mounting holes | 4 pcs |
| Weight with packaging | 60 g |
Pinout
| Pin | Symbol | Function |
|---|---|---|
| 1 | VSS | ground (GND) |
| 2 | VDD | power supply +5 V |
| 3 | VO | contrast adjustment |
| 4 | RS | register select (command / data) |
| 5 | R/W | read / write |
| 6 | E | Enable signal |
| 7 | DB0 | data, bit 0 |
| 8 | DB1 | data, bit 1 |
| 9 | DB2 | data, bit 2 |
| 10 | DB3 | data, bit 3 |
| 11 | DB4 | data, bit 4 |
| 12 | DB5 | data, bit 5 |
| 13 | DB6 | data, bit 6 |
| 14 | DB7 | data, bit 7 |
| 15 | LEDA (A) | LED backlight anode |
| 16 | LEDK (K) | LED backlight cathode |
Applications
- Arduino and Arduino-compatible boards
- ATmega / AVR, PIC, STM32 microcontrollers
- ESP32, ESP8266 and other 3.3 V boards – only with suitable logic-level matching (the display is powered from 5 V)
- measuring devices and laboratory equipment
- temperature and process controllers
- industrial automation and CNC controllers
- custom electronic designs
Important
The pins come without a soldered header – to connect, solder a 2.54 mm pin header or wires.
EX-LCD1604A
