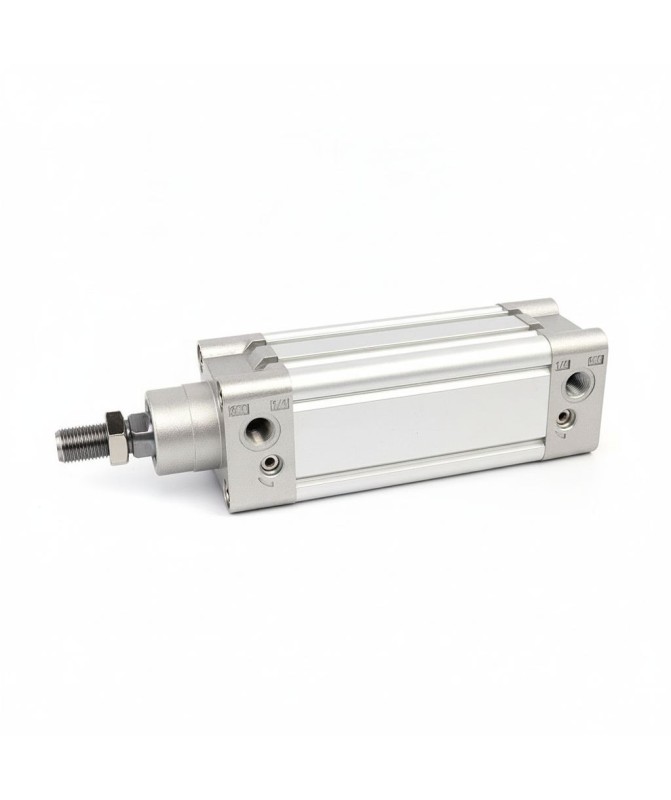

Pneumatic Cylinder DNC 40 – ISO 6431 | Double Acting

Pneumatic Cylinder Series DNC 40 - ISO6431 Standard (Double Acting)

Piston diameter d

AM

B

D2

D5

D7

E

EE
(G)

J3

J4

KK

L2

L3

L4

L5

L6

L7

L8

SW1

SW2

VD

WH

ZB

40

24

35

16

38

M6

54

1/4

8

6

M12×1.25

46

89

4

29.6

22

3.6

10

13

6

20

30

135

Main characteristics:

Series: DNC

Piston diameter: 40 mm

Type: Pneumatic cylinder (Air Cylinder)

Standard: ISO 6431 / ISO 15552

Action: Double Acting

Operating medium: Filtered compressed air

Body material: Aluminium alloy

Operating pressure: approx. 0.1 – 1.0 MPa

Maximum pressure: approx. 1.35 MPa

Operating temperature: approx. -5°C to +70°C

Movement speed: 50 – 800 mm/s

Cylinder stroke: standard strokes from 50 to 1000 mm.

✔ Made to order – usually 2–3 working days.

If you need a stroke that is not among the standard options, please contact our team – we also make non-standard sizes.

DNC40-50
Model: Stroke 50
€54.60
Tax included
Made to order – 2–3 working days

Awaiting delivery

DNC series pneumatic cylinders are industrial linear motion cylinders compatible with ISO 6431 standard. They are designed for reliable operation in automated systems, production lines, and machinery.

The cylinder is double-acting – compressed air drives the piston both during extension and retraction, allowing for better movement control and greater force.

The barrel is made of aluminium alloy, ensuring high strength, low weight, and good corrosion resistance. Thanks to their standard design, DNC series cylinders can be easily combined with various mounting accessories and sensors.

Applications:

industrial automation

packaging machines

robotic systems

production lines

machining equipment

transport and positioning systems
