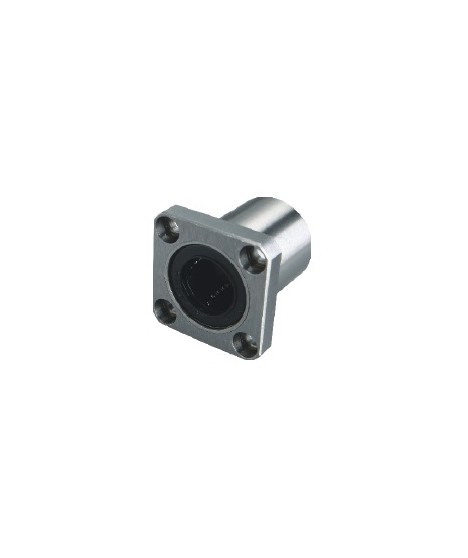

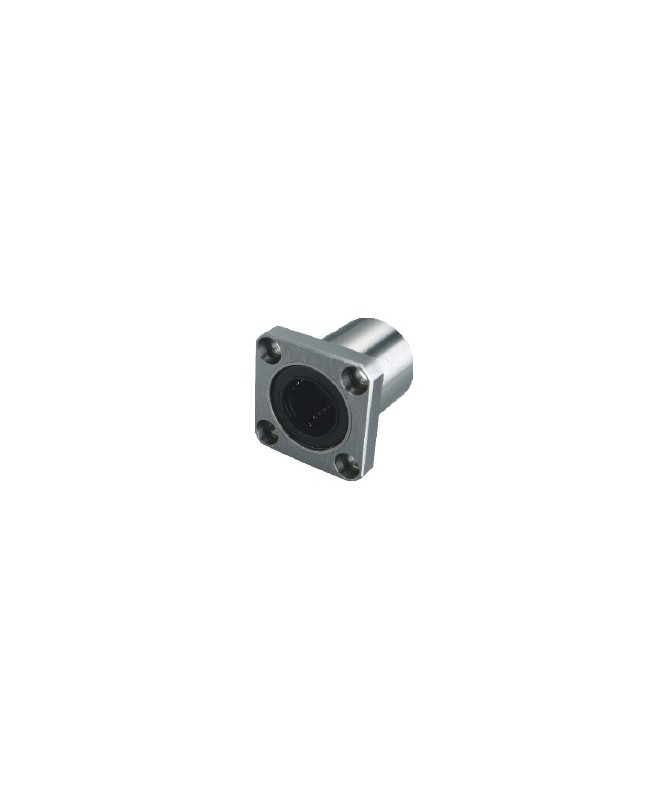

Linear bearing LMK 8 - EXFLMK8

Model – LMK8

Ball rows – 4

dr – 8

D – 15

L – 24

D1 – 32

H – 5

PCD – 24

K – 25

W – 21

A – 24

d1 x d2 x h – 3.5 x 6 x 3.1

Eccentricity (max) – 12

Radial clearance (max): -3

Dynamic load – 27 kg

Static load – 39 kg

Weight – 0.037 kg

€2.52 pcs
Tax included
Awaiting delivery

Awaiting delivery
Shipping to the EU from: €5.44 (RO) · €6.62 (GR) · €9.04 (HR, CZ, HU, PL, SK, SI) · €17.29 (CY) · €18.12 (AT, DE) · €24.96 (BE, FR, IT, NL) · €43.07 (ES) · €44.75 (DK, LU) · €63.94 (EE, FI, LV, LT, PT, SE). VAT incl., smallest parcel; the exact price is calculated at checkout by weight and size. Transit 2–7 working days after dispatch. IE, MT: price on request. Delivery times and details

The LMK series bearing is a cylindrical plain bearing that includes a flange, making it easy to mount and install. This type of bearing is widely used in engineering and manufacturing processes due to its reliability and ease of installation.

Key Features:

Material :

- The bearing housing is made of high-quality steel, and the inner bearing can be made of bronze, steel, or another material with anti-friction properties.

Shape and Design :

- The bearing has a cylindrical shape with an external flange at one end.

- The flange has mounting holes, facilitating the fixing of the bearing onto the surface.

Application :

- Widely used in various mechanical systems such as machine tools, robots, and other industrial equipment.

- Ideal for applications requiring precise positioning and stable operation.

Dimensions :

- Available in various sizes to meet specific application requirements. Dimensions may vary by inner diameter, outer diameter, and flange thickness.

Advantages :

- Easy to install thanks to the flange.

- High wear resistance and durability.

- Ensures stable and smooth operation with minimal friction.

Maintenance :

- Requires periodic lubrication depending on the material and operating conditions.

- Easy access for inspection and replacement thanks to the flange design.
